Detail produk:
|
|
| Tempat asal: | Cina |
|---|---|
| Nama merek: | hongcheng |
| Sertifikasi: | PED、ABS、BV、DNV、GL、LR、SGS、IEI |
| Nomor model: | 1/2" SAMPAI 72" |
|
Syarat-syarat pembayaran & pengiriman:
|
|
| Kuantitas min Order: | 1 BUAH |
| Harga: | negotiable |
| Kemasan rincian: | Dalam kasus kayu, palet atau sesuai kebutuhan pelanggan |
| Waktu pengiriman: | 7-15 hari kerja |
| Syarat-syarat pembayaran: | L/C, D/P, T/T |
| Menyediakan kemampuan: | 2 Juta Ton/Tahun |
|
Informasi Detail |
|||
| Tempat asal:: | Cina | Topi:: | Topi Akhir BW |
|---|---|---|---|
| Syarat-syarat pembayaran: | T/T, L/C PADA PENGLIHATAN | Standar:: | ASTM A403/ASME B16.11/ANSI/DIN/MSS-SP-97/JIS B2316 |
| Ketebalan:: | Sch5-Sch160 | Aplikasi:: | Pipa Gas dan Minyak, Gas Minyak Bumi, Bergabung dengan Jalur Pipa |

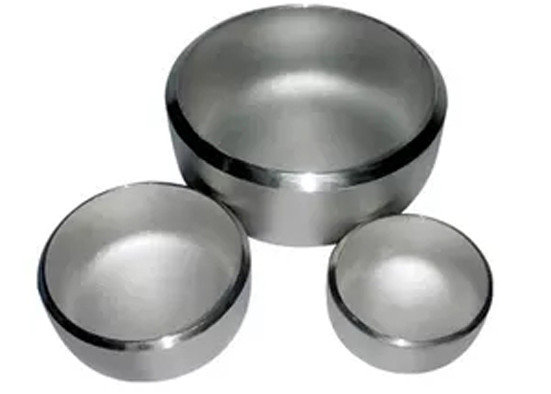

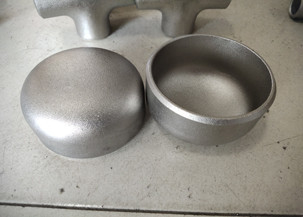

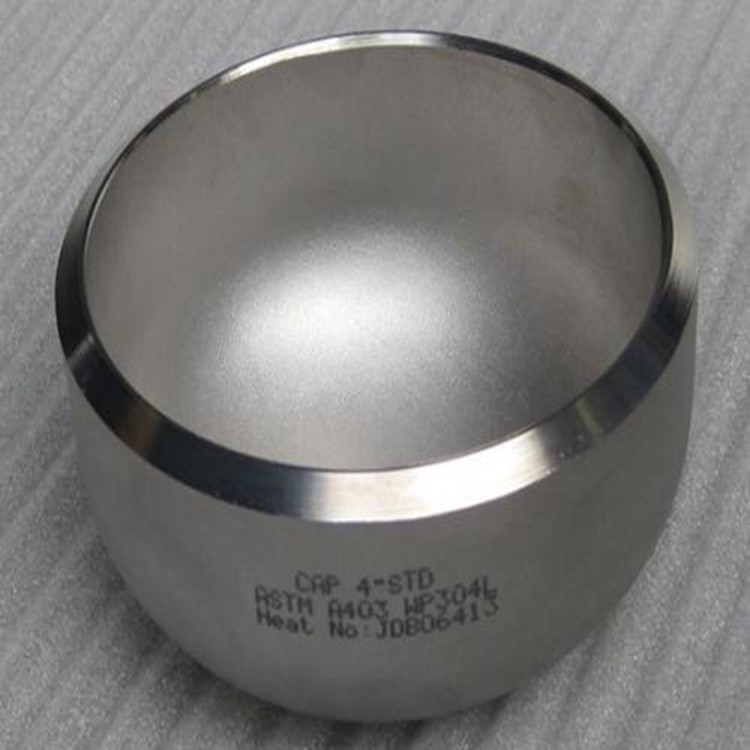

| Menyoroti: | SCH160 Pipe End Cap Stainless Steel,A403 Pipe End Cap Stainless Steel,Tutup Pipa Stainless Steel Minyak Bumi |
||
Deskripsi Produk
Spesifikasi:
| NPS | OD D |
PANJANG H |
PANJANG H1 |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 25 | 25 |
| 1 | 33.4 | 38 | 38 |
| 1.1/4 | 42.2 | 38 | 38 |
| 1.1/2 | 48.3 | 38 | 38 |
| 2 | 60.3 | 38 | 44 |
| 2.1/2 | 73 | 38 | 51 |
| 3 | 88.9 | 51 | 64 |
| 3.1/2 | 101.6 | 64 | 76 |
| 4 | 114.3 | 64 | 76 |
| 5 | 141.3 | 76 | 89 |
| 6 | 168.3 | 89 | 102 |
| 8 | 219.1 | 102 | 127 |
| 10 | 273 | 127 | 152 |
| 12 | 323.8 | 152 | 178 |
| 14 | 355.6 | 165 | 191 |
| 16 | 406.4 | 178 | 203 |
| 18 | 457 | 203 | 229 |
| 20 | 508 | 229 | 254 |
| 22 | 559 | 254 | 254 |
| 24 | 610 | 267 | 305 |
| 26 | 660 | 267 | … |
| 28 | 711 | 267 | … |
| 30 | 762 | 267 | … |
| 32 | 813 | 267 | … |
| 34 | 864 | 237 | … |
| 36 | 914 | 267 | … |
| 38 | 965 | 305 | … |
| 40 | 1016 | 305 | … |
| 42 | 1067 | 305 | … |
| 44 | 1118 | 343 | … |
| 46 | 1168 | 343 | … |
| 48 | 1219 | 343 | … |
Tabel Berat Tutup Ujung Pipa
| NPS | penyakit menular seksual | XS | SCH 160 | XXS |
| 1 | 0,09 | 0.14 | 0.18 | 0,23 |
| 1.1/4 | 0.14 | 0.18 | 0,23 | 0.34 |
| 1.1/2 | 0.18 | 0,23 | 0.27 | 0,41 |
| 2 | 0.27 | 0.34 | 0,57 | 0.68 |
| 2.1/2 | 0,41 | 0,45 | 0,79 | 1.13 |
| 3 | 0.68 | 0,79 | 1.32 | 1.81 |
| 3.1/2 | 0,91 | 1.13 | – | 2.72 |
| 4 | 1.13 | 1.36 | 2.68 | 3.4 |
| 5 | 2.04 | 2.49 | 4,54 | 5.44 |
| 6 | 2.95 | 4.08 | 6.8 | 8.16 |
| 8 | 5.44 | 7.26 | 14.06 | 13.61 |
| 10 | 9.07 | 11.34 | 25.85 | – |
| 12 | 13.61 | 16.33 | 43.09 | – |
| 14 | 16.33 | 20.41 | – | – |
| 16 | 18.14 | 24.49 | – | – |
| 18 | 24.49 | 32.66 | – | – |
| 20 | 34.02 | 39.01 | – | – |
| 22 | 42.64 | 56,7 | – | – |
| 24 | 43.54 | 58.97 | – | – |
| 26 | 53,98 | 72.12 | – | – |
| 30 | 78.02 | 103,87 | – | – |
| NPS | penyakit menular seksual | XS | SCH 160 | XXS |
